Image Descriptor and Modules

Note

This chapter applies to builder engines that use Dockerfile as the input.

While module processing chapter covered the template processing modules this section describes how the image processing interacts with the module processing.

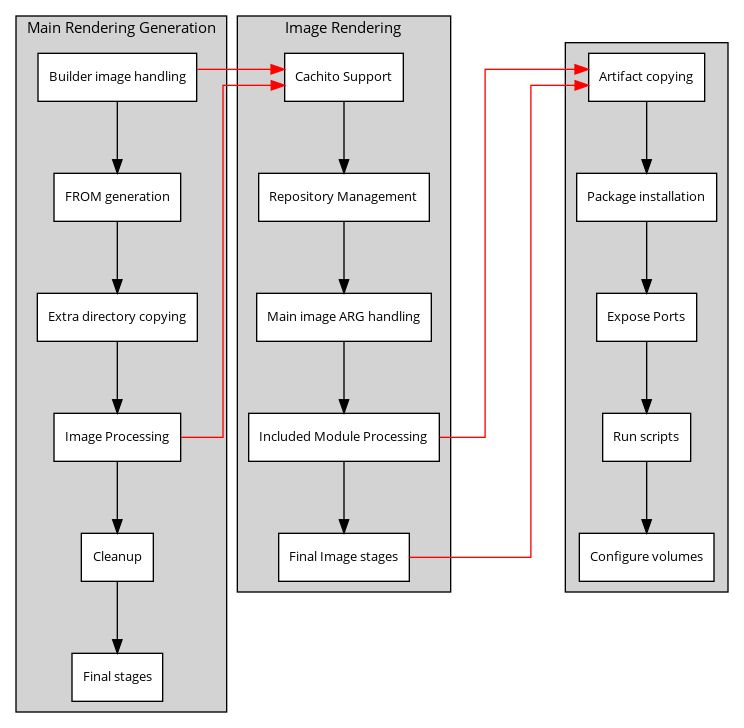

digraph module_installation { graph [fontsize="11", fontname="Open Sans", compound="true", splines=ortho, nodesep=0.5, ranksep=0.75]; node [shape="box", fontname="Open Sans", fontsize="10"]; // main rendering subgraph cluster_0 { label="Main Rendering Generation"; builder [label="Builder image handling"]; from [label="FROM generation"]; extra [label="Extra directory copying"]; image [label="Image Processing"]; cleanup [label="Cleanup"]; final [label="Final stages", href="#final-stages"]; } // process_image subgraph cluster_1 { label="Image Rendering"; cachito [label="Cachito Support", rank=same]; repo [label="Repository Management"]; module [label="Included Module Processing"]; complete_image [label="Final Image stages", href="#final-image-stages"]; } // process_module subgraph cluster_2 { artifact [label="Artifact copying", rank=same]; pkg_install [label="Package installation"]; ports [label="Expose Ports"]; run [label="Run scripts"]; volumes [label="Configure volumes"]; } // graph control builder -> from -> extra -> image -> cleanup -> final; cachito -> repo -> module -> complete_image; artifact -> pkg_install -> ports -> run -> volumes; // subgraph links builder -> cachito[constraint=false]; image -> cachito[constraint=false]; module -> artifact[constraint=false]; complete_image -> artifact[constraint=false]; }

Final Stages

This encompasses defining the USER, the WORKDIR, and ENTRYPOINT. Finally the RUN command is generated.

Final Image Stages

This encompasses the final part of the generation for the image descriptor which may include e.g. package installation. Note that this happens after modules have been included and processed.
